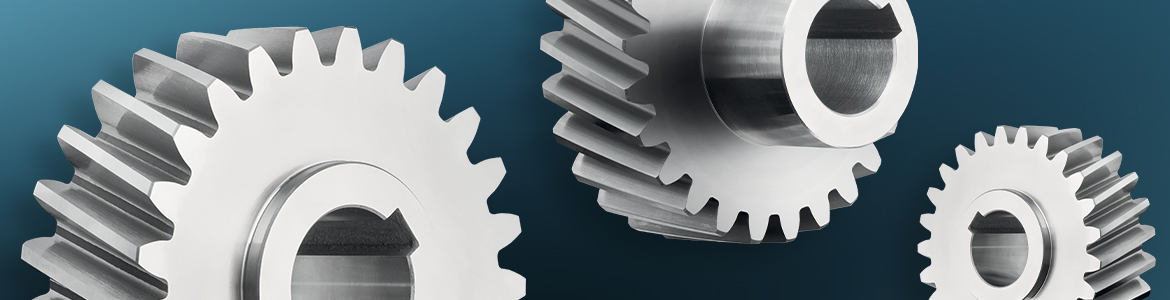

Helical gears

Gambini Meccanica manufactures precision gears up to module 30, with just milled or ground profiles, with helical tooth system, right or left-hand with any possible inclination.
The maximum external diameter we can realize is up to 1000 mm. We use different raw materials: C45, 18NiCrMo5, 20MnCr5, all the alloy or not alloy materials, different types of nylon, cast irons, alloys of common bronze and bronze-aluminium, alloys of aluminium, stainless steel and different typologies of Bakelite.



Request the technical brochure about the transmission force of our rack and pinion systems.

Request the technical brochure

GEARS WITH JUST-IN-TIME DELIVERY

Are you looking for a gear with STANDARD DIMENSIONS with fast delivery time? Do you need a SAMPLE PIECE with just-in-time delivery? If you buy products in our online shop we will ship them within 3 WORKING DAYS upon receipt of payment.
Order your standard piece

CUSTOMIZED GEARS

One of the key elements of Gambini Meccanica is the TECHNICAL DESIGN service: a team of specialized technicians is able to collaborate with customers in order to meet their design needs and to offer CUSTOMIZED PRODUCTS.
Customize your product

Products range index

SERIES QUALITY MATERIAL HEAT-TREATMENT HRC SURFACE HUB MODULES
300
 5e24 20MnCr5 case hardening 60 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
305
 5e24 C45 induction-hardened teeth 55-58 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
310
 5e24 20MnCr5 case hardening 60 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
315
 5e24 C45 induction-hardened teeth 55-58 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
320
 6e24 20MnCr5 case hardening 60 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
325
 6e24 C45 induction-hardened teeth 55-58 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
330
 6e24 20MnCr5 case hardening 60 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
335
 6e24 C45 induction-hardened teeth 55-58 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
340
 7e25 20MnCr5 case hardening 60 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
345
 7e25 C45 induction-hardened teeth 55-58 ground short 1.5_2_2.5_3_3.183_4_5_6_8_10
350
 7e25 20MnCr5 case hardening 60 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
355
 7e25 C45 induction-hardened teeth 55-58 ground long 1.5_2_2.5_3_3.183_4_5_6_8_10
360
 9e25 C45 not included – milled teeth short 1.5_2_2.5_3_3.183_4_5_6_8_10
365
 9e25 C45 not included – milled teeth long 1.5_2_2.5_3_3.183_4_5_6_8_10
370
 10e25 C45 induction-hardened teeth 55-58 milled teeth, ground internal hole short 1.5_2_2.5_3_3.183_4_5_6_8_10
375
 10e25 C45 induction-hardened teeth 55-58 milled teeth, ground internal hole long 1.5_2_2.5_3_3.183_4_5_6_8_10

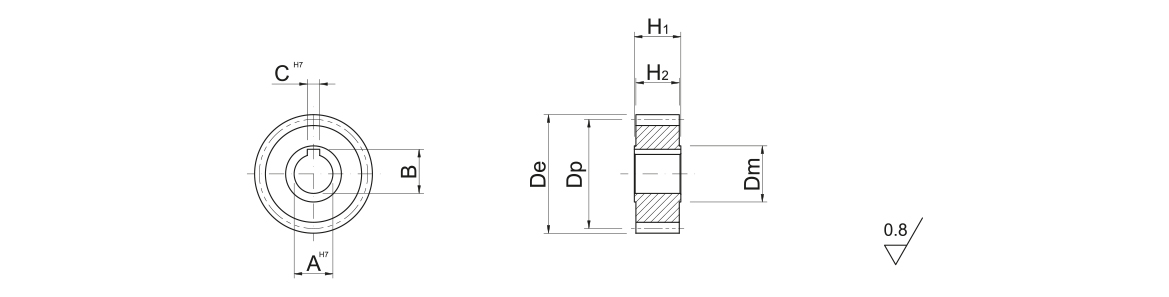

TECHNICAL SHEET
